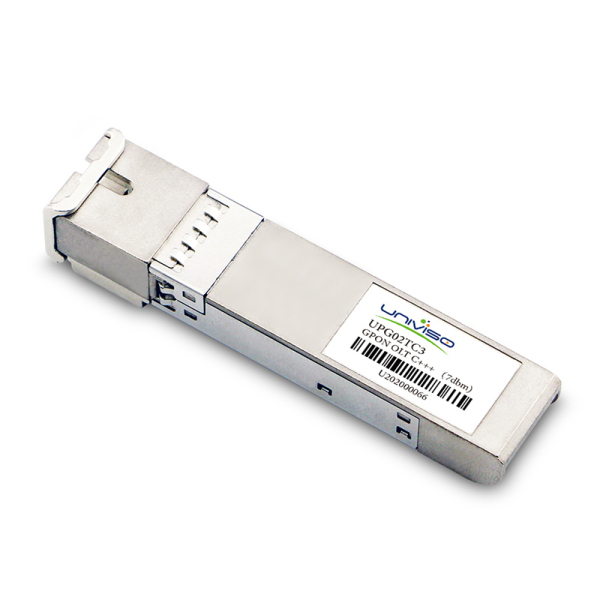

| Description | GPON-OLT-C+++ | Max Data Rate | TX-2.5G/RX-1.25G |
| Form Factor | SFP | Max Distance | 20km |
| Wavelength | TX 1490nm/RX 1310nm | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Simplex SC | TX Power | +3.0~+7.0dBm |
| Cable Type | SMF | Protocols | MSA Compliant |
Product Features
• Support ITU-T G.984.2 GPON OLT C++ Enhanced application
• Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
• 1490nm continuous-mode transmitter with DFB LD
• 1310nm burst-mode receiver with APD-TIA
• 2-wire interface for integrated digital diagnostic Monitoring
• Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
• SFP package with SC/UPC receptacle optical interface
• Single +3.3V power supply
• Operation case temperature 0~70°C
• RoHS6 compliance
