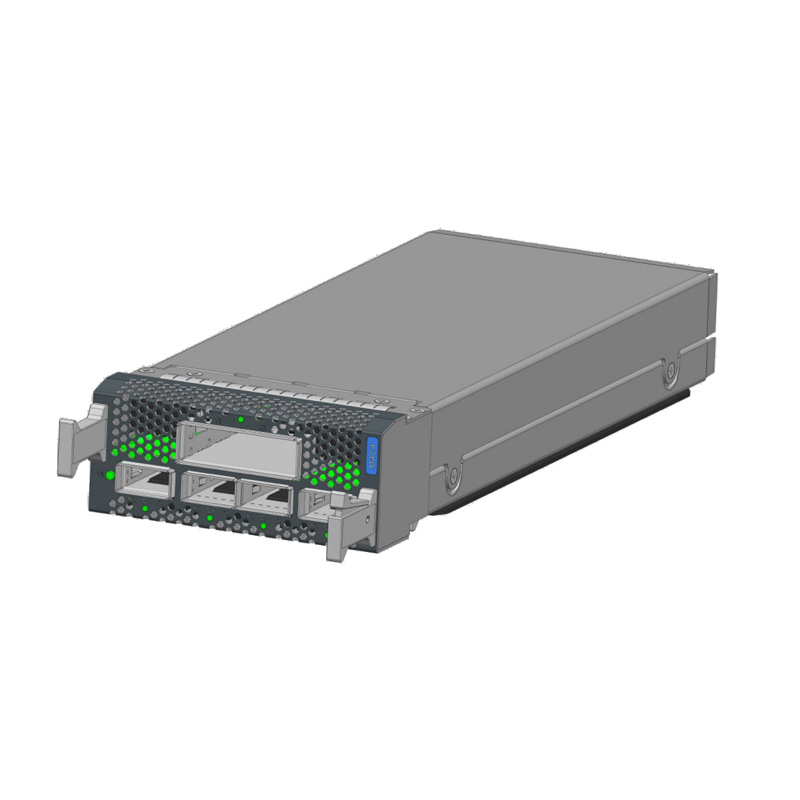

| Function | 400G branch line integrated card The client side supports 4 100G QSFP28 ports or 1 400G QSFP -DD port The line side supports 1 400G CFP2 port with adjustable wavelength |
|---|---|
| Board size | Occupies 1/4 slot, single device fully equipped with 8 blocks |

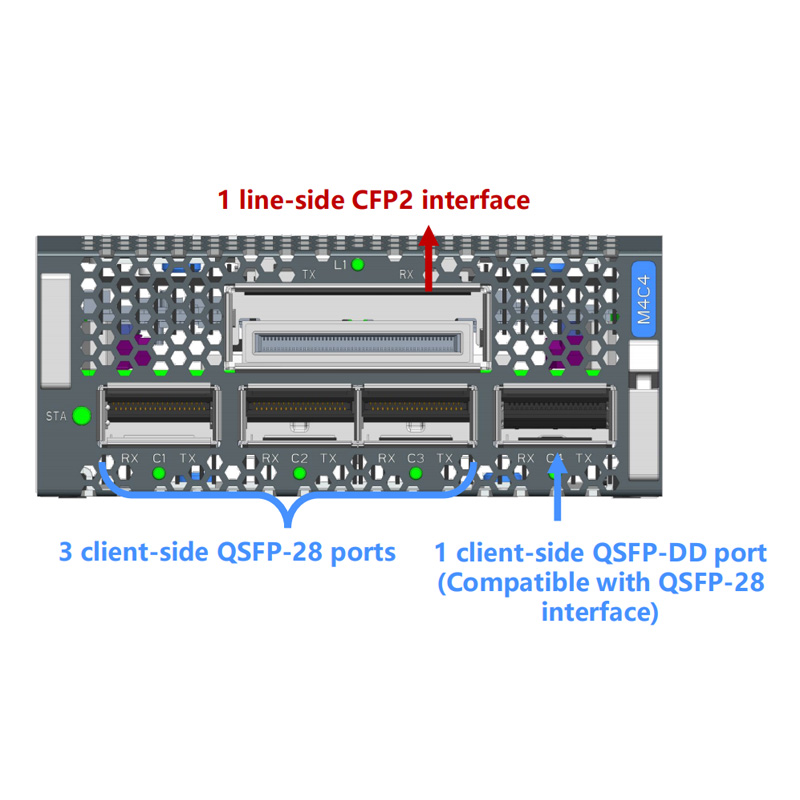

| Line side | 1 CFP2 port : supports pluggable 400G CFP2-DCO coherent transceivers |
| Line side functions | Service format: 400G PM-16QAM; Support FEC : SD-FEC Adjustable emission wavelength: supports CE band 4.8T,CP band 6T, optional specifications; Adjustable transmitted optical power; Supports GCC management function and delay measurement function Complying with the frame format and overhead processing of G.709 protocol, ODUC4 supports PM and SM functions |
| Client side | 1 QSFP -DD port: supports 400GE QSFP-DD or 100G QSFP28 pluggable
tranceivers 3 QSFP28 ports: support 100G QSFP28 pluggable tranceivers |
| Client-side functions | Service format: 100GE , 100GE FlexE ( Unware mode), OTU4 , 400GE; Support FEC : RS-FEC Supports client-side tranceiver types: 400GE QSFP-DD SR8/FR4/DR4/LR4 or 100G QSFP28 SR4/CWDM4//LR4/ER4/ZR4 transceivers Support Ethernet RMON monitoring function, OTN performance alarm Support ALS , support client-side LLDP |
| Performance Monitoring and Alarm monitoring | Support OTN performance monitoring and alarm monitoring functions Supports transceivers temperature, current, optical power monitoring, etc. Support Ethernet RMON monitoring Support Telemetry |
