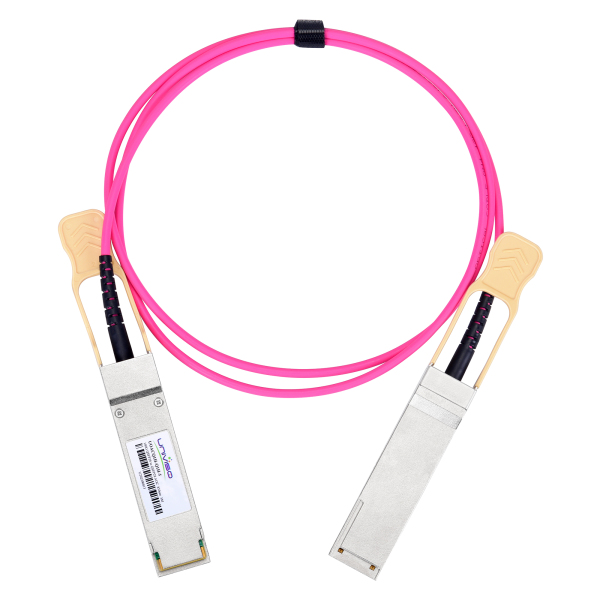

| Form Factor | QSFP28 | support Hot-pluggable | Yes |
| Max Data Rate | 100G | Warranty Time | 3 years |
| Max Cable Distance | 5m/OEM | DDM/DOM function | Yes |
| Connector | MPO | power consumption | <2.5W |
| Wavelength | 850nm | Transmitter Type | VCSEL |
| Fiber Type（Media）: | OM3 | Receiver Type | PIN |
Product Features
• Hot-pluggable QSFP28 form factor
• 4 high-speed full duplex channels
• Supports 103.1Gb/s aggregate bit rate
• 4x25Gbps 850nm VCSEL laser
• QSFP28 MSA compliant
• Operating environment temperature -5 ~ 70℃
• Low power dissipation:<3.5W per cable end(<2.5W with CDRs off)
• Available in lengths of 1 to 100 meters
• RoHS-6 compliant
Application
• 100 Gigabit Ethernet links
• Infiniband interconnect
• Data center cabling infrastructure
• High density connections between networking equipment
