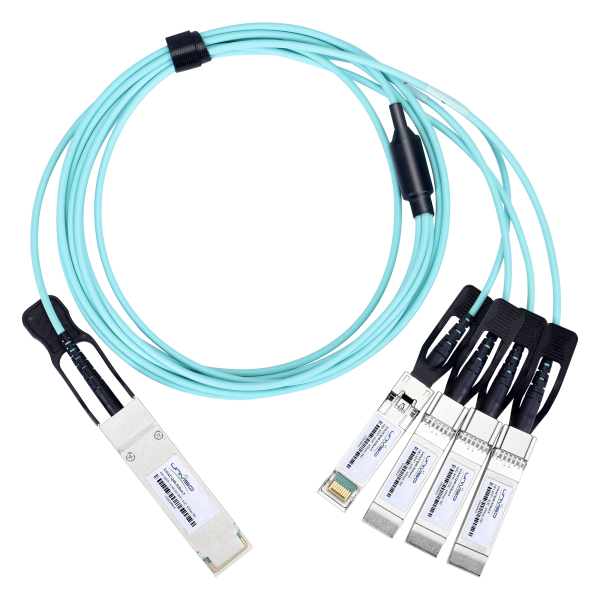

| Form Factor | 40G QSFP+ to 4X10G SFP+ | support Hot-pluggable | Yes |
| Max Data Rate | 40G | Warranty Time | 3 years |
| Max Cable Distance | 5m/OEM | DDM/DOM function | Yes |
| Connector | MPO-LC | power consumption | <1.5W/QSFP+ <1W/SFP+ |
| Wavelength | 850nm | Transmitter Type | VCSEL |
| Fiber Type（Media）: | OM3 | Receiver Type | PIN |
Product Features
QSFP+ AOC end:
• Compliant to the 40GBASE-SR4 and XLPPI
Specification per IEEE 802.3ba-2010 and supporting
40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
• Compliant to the industry standard SFF-8436 QSFP+ Specification
• Power Level 1: Max Power < 1.5 W
• Operate at 10.3125 Gbps per channel with
64b/66b encoded data for 40GbE application and at 10
Gbps with 8b/10b compatible encoded data for 40G-IB-QDR application
Each 4×SFP+ end:
• Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form
Factor Pluggable Module
• Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor “IPF”
• Maximum power dissipation 0.35W per end
Active Optical Cable Assembly:
• Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver
• Commercial operating case temperature range: -5ºC to 70ºC
• RoHS-6 Compliant
• Hot pluggable for ease of servicing and installation
• Two Wire Serial interface
• Utilizes optical fiber for high density and thin, lightweight cable management
Application
• 40GbE and 10GbE break-out applications for Datacom switch and router connections
• 40G to 4×10G density applications for Datacom and Proprietary protocol applications
• Datacenter
