| Max Data Rate | 40G | Warranty Time | 3 years |
| Max Cable Distance | 5m/OEM | DDM/DOM function | Yes |
| Connector | MPO | power consumption | <1.5W |
| Wavelength | 850nm | Transmitter Type | VCSEL |
| Fiber Type（Media）: | OM3 | Receiver Type | PIN |
Product Features

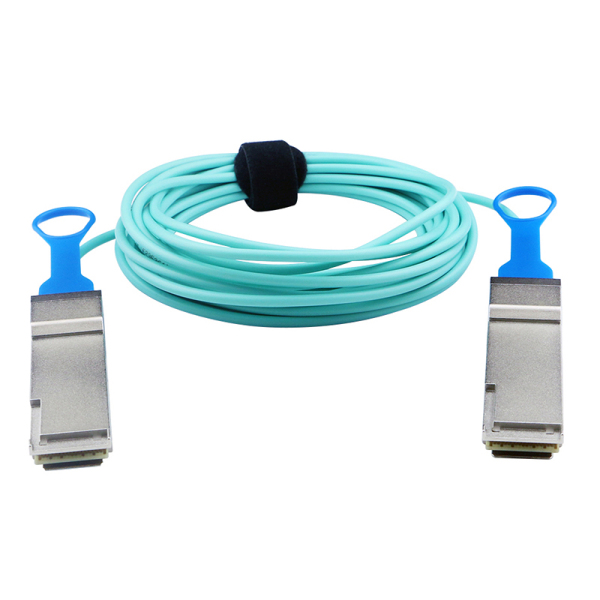

• Four-channel full-duplex active optical cable
• Transmission data rate up to 11.3Gbps per channel
• High Reliability 850nm VCSEL technology
• Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
• Low power consumption <1.5W
• Operating case temperature -5°C to +70°C
• 3.3V power supply voltage
• RoHS 6 compliant
• Hot Pluggable QSFP form factor
Application
• Infiniband QDR/DDR/SDR
• 40G Ethernet
• Datacenter
• 4G/8G/10G Fiber Channel
