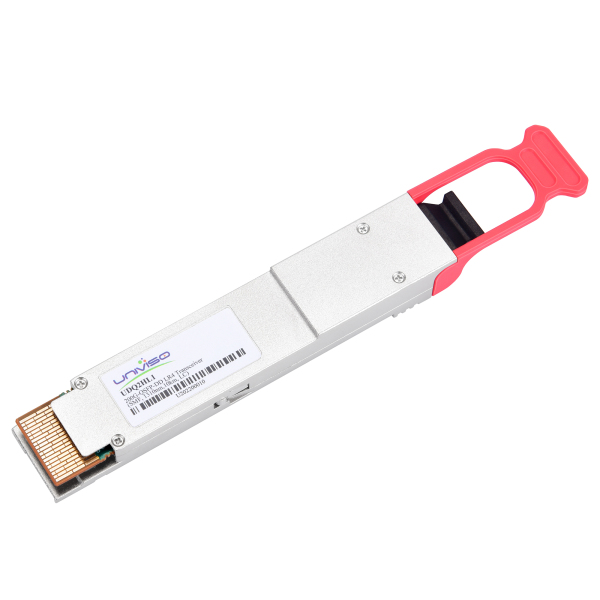

| Description | 200G QSFP-DD LR4 | support Hot-pluggable | Yes |
| Max Data Rate | 212.5Gbps (8x 26.5625Gbps) | Warranty Time | 3 years |
| Max Cable Distance | 10km | DDM/DOM function | Yes |
| Connector | LC | No. of Fiber | 2 |
| Wavelength | 1310nm | Fiber Type（Media）: | SMF |
Product Features
• Supports 200GBASE-LR4;
• Lane bit rate 53.125 Gb/s with PAM4;
• Up to 10km transmission on SMF;
• LAN WDM laser and PINreceiver;
• 200GAUI-8 Electrical interface with 8 Lanes
26.5625Gb/s NRZ high-speed signal;
• I2C interface with integrated Digital Diagnostic monitoring;
• QSFP-DD MSA package with duplex LC connector;
• Compliant with IEEE 802.3cn 200GBASE-LR4
• Single +3.3V power supply;
• Maximum power consumption 10W;
• Operating case temperature: 0 to +70 °C;
• Compliant to QSFP-DD CMIS standard;
• Compliant to 802.3cu& QSFP-DD MSA HW standard;
• Complies with EU Directive 2015/863/EU;
Application
• 200GBASE-LR4 Ethernet (PAM4)
• 5G Back-haul
• Data center
• Cloud application.
