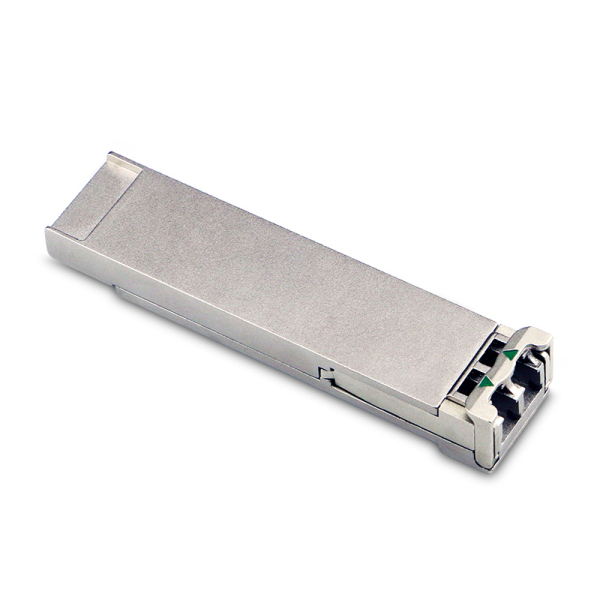

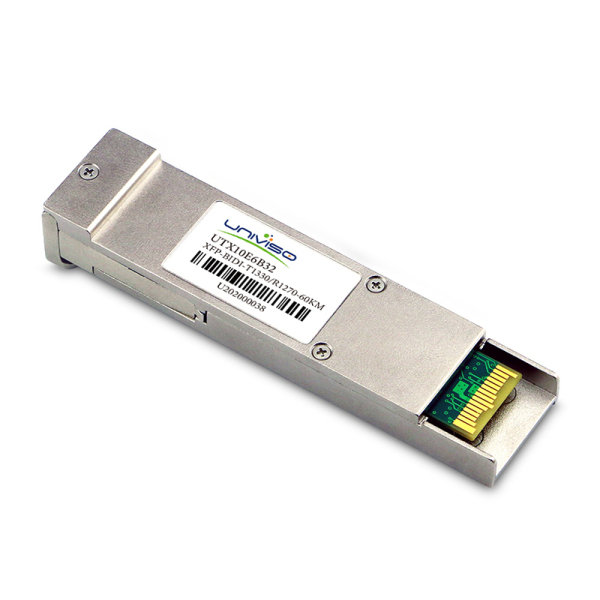

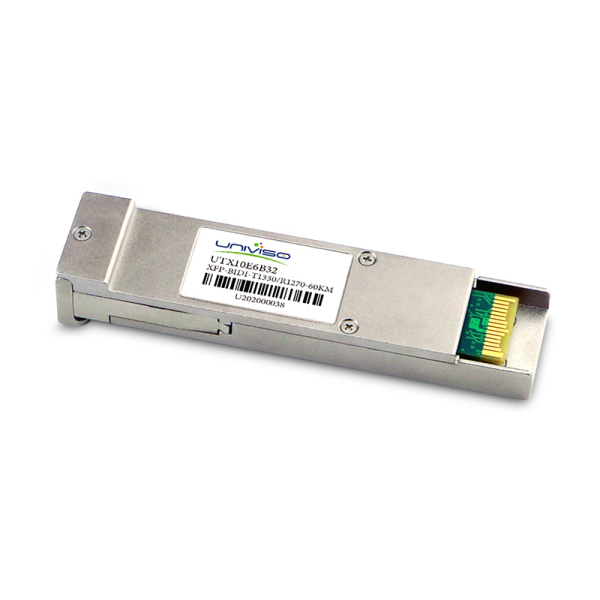

| Description | 10G XFP+ BIDI 60KM | support Hot-pluggable | Yes |
| Max Data Rate | 11.3Gbps | Warranty Time | 3 years |
| Max Cable Distance | 60km | DDM/DOM function | Yes |
| Connector | LC | No. of Fiber | 1 |
| Wavelength | T1330/R1270 | Fiber Type（Media）: | SMF |
Product Features
• Supports 9.95Gbps to 11.3Gbps bit rates
• Hot-pluggable XFP footprint
• XFI Loopback Mode
• 1270nm DFB laser and PIN receiver for UTX10E6B23
• 1330nm DFB laser and PIN receiver for UTX10E6B32
• Up to 60km for SMF transmission
• Compliant with SFP+ MSA and SFF-8472 with single LC receptacless Compatible with RoHS
• Single +3.3V power supply
• Power dissipation<2.0W
• 2-wire interface with integrated Digital Diagnostic monitoring
• EEPROM with Serial ID Functionality
• Operating case temperature:
• Standard: -5 to +70°C
• Industrial: -40 to +85°C
Applications
• 10GBASE-LR/LW 10G Ethernet
• 10G Fiber Channel
•SONET OC-192 SR-1 SDH STM I-64.1
