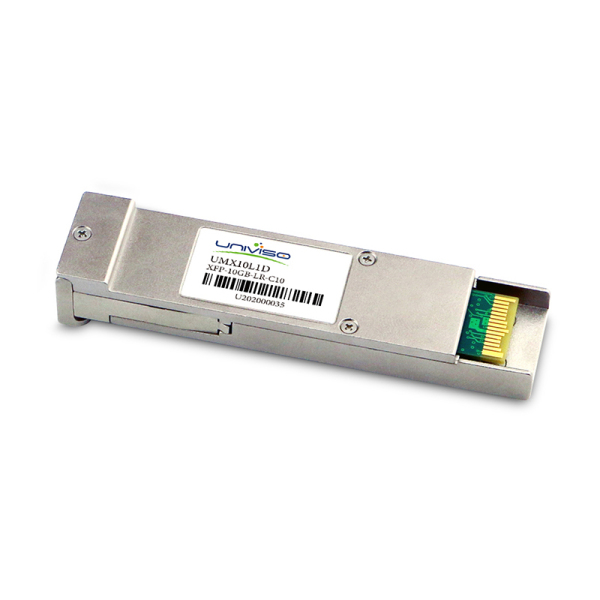

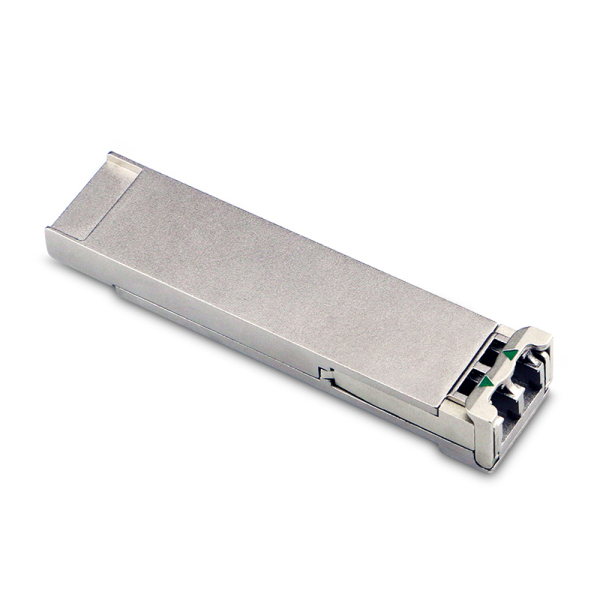

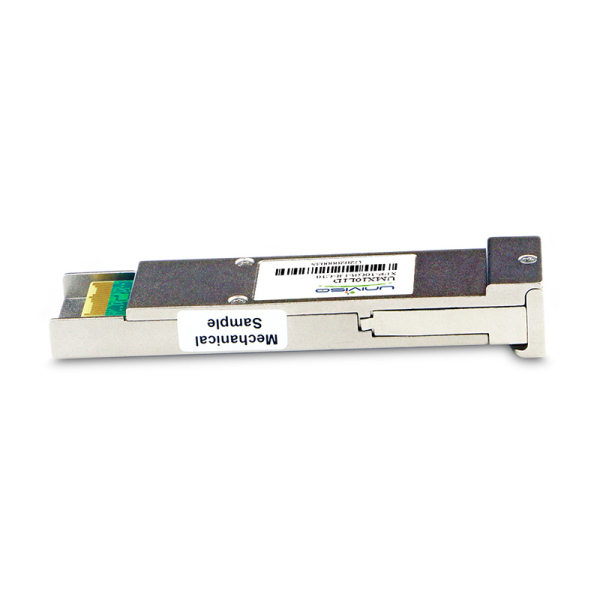

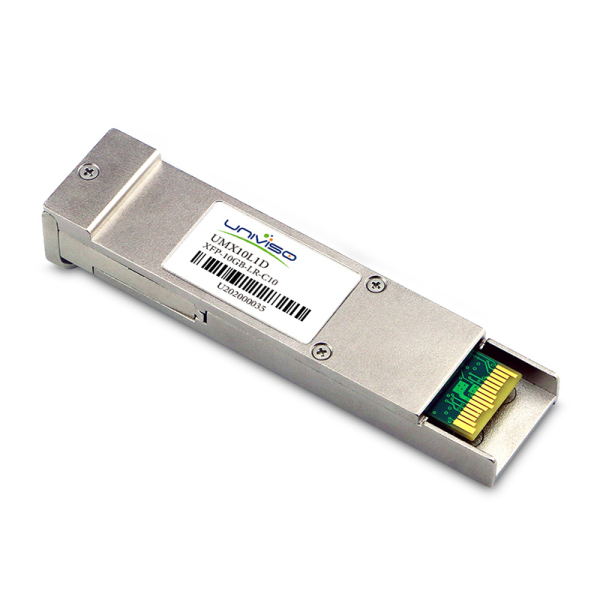

| Description | 10G XFP+LR | support Hot-pluggable | Yes |
| Max Data Rate | 11.3Gbps | Warranty Time | 3 years |
| Max Cable Distance | 10km | DDM/DOM function | Yes |
| Connector | LC | No. of Fiber | 2 |
| Wavelength | 1310nm | Fiber Type（Media）: | SMF |
Product Features
• XFI Loopback Mode
• Supports 9.95Gbps to 11.3Gbps bit rates
• Power dissipation <2.0W
• DFB laser and PIN receiver
• Single +3.3V power supply
• Hot-pluggable XFP footprint
• Maximum link length of 10km
• No Reference Clock required
• Operating temperature range:
• Commercial: -5℃~+70℃
• RoHS Compliant
• Full Duplex LC connector
• Built-in digital diagnostic functions
• Standard bail release mechanism
Applications
• 10GBASE-LR/LW 10G Ethernet
• 10G Fiber Channel
• SONET OC-192 SR-1 SDH STM I-64.1
