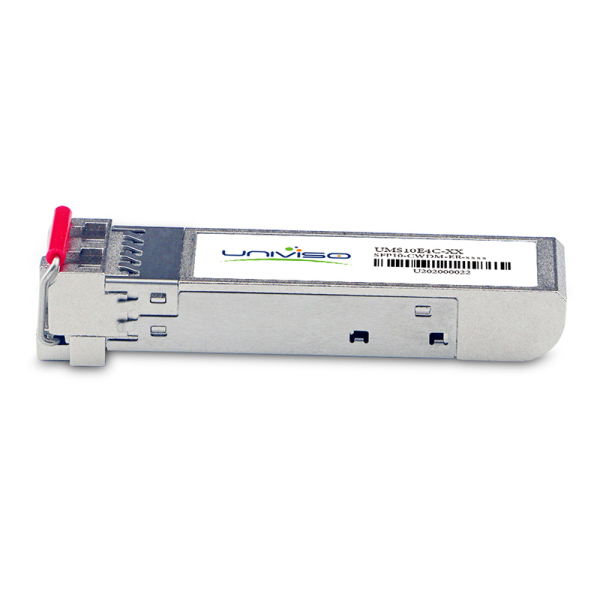

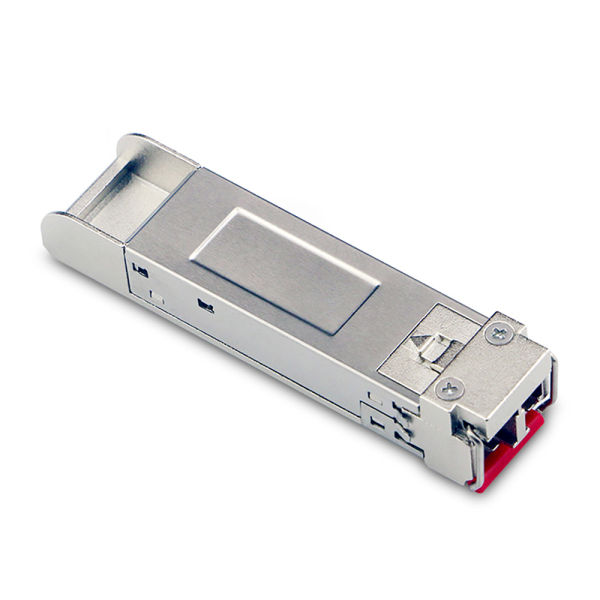

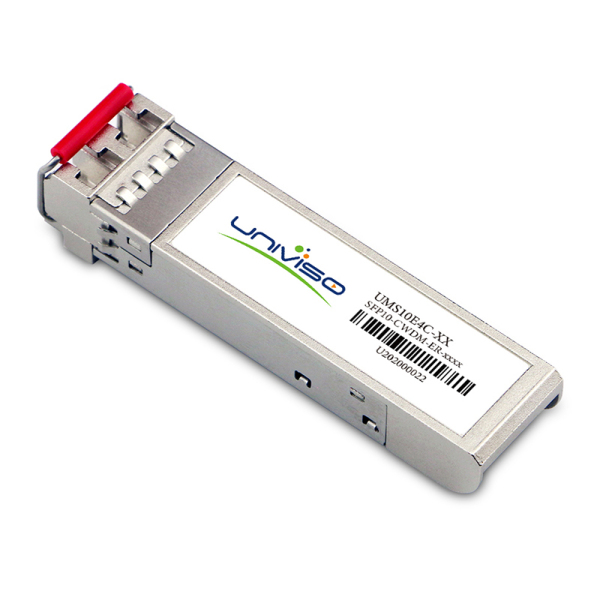

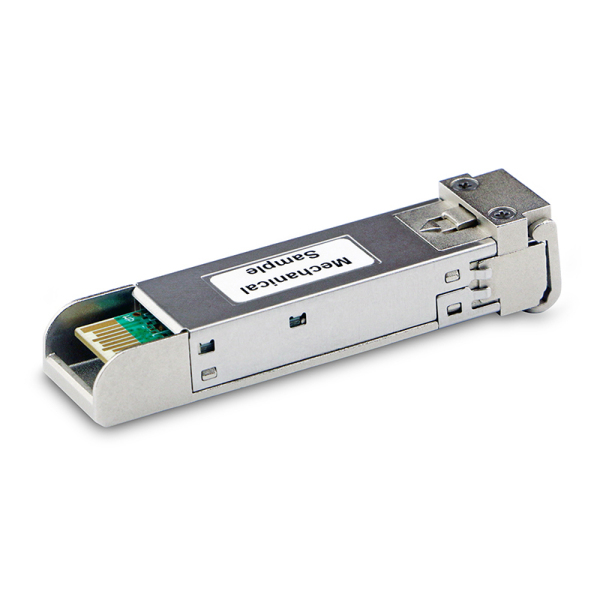

| Description | 10GBase-CWDM SFP+ | support Hot-pluggable | Yes |
| Max Data Rate | 10Gbps | Warranty Time | 3 years |
| Max Cable Distance | 40km | DDM/DOM function | Yes |
| Connector | LC | No. of Fiber | 2 |
| Wavelength | 1270~1330nm CWDM | Fiber Type（Media）: | SMF |
Product Features
• Up to 11.1Gbps Data Links
• Uncooled CWDM DFB Laser and PIN receiver
• Metal enclosure, for lower EMI
• Single +3.3V power supply
• Hot-pluggable
• Power dissipation < 1.5W
• Operating temperature range: Commercial: -5℃~+70℃
• RoHS Compliant
• 2-wire interface with integrated Digital Diagnostic monitoring
• Up to 40km transmission distance over Single Mode Fiber(SMF) without CDR inside
Application
• 10GBASE-ER/EW
• 10G Ethernet
