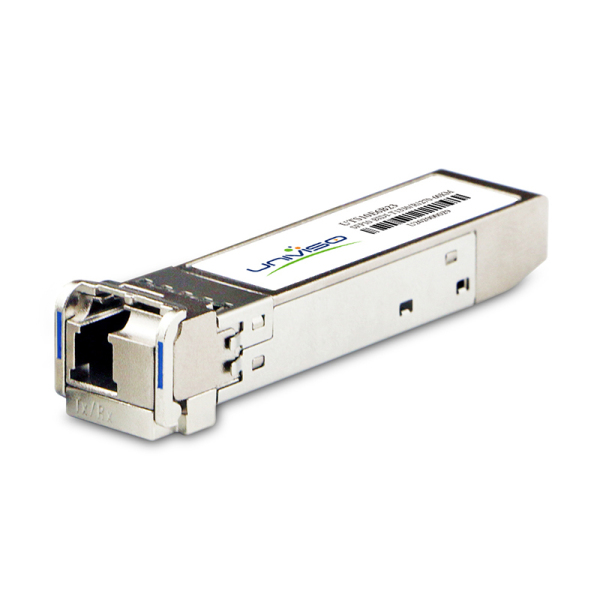

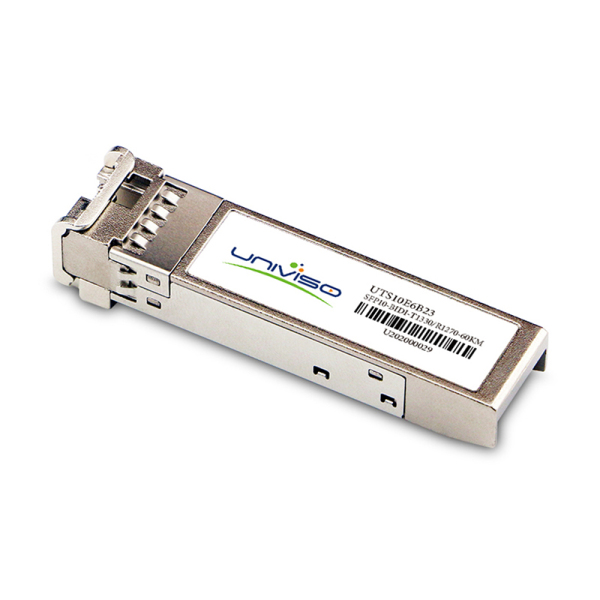

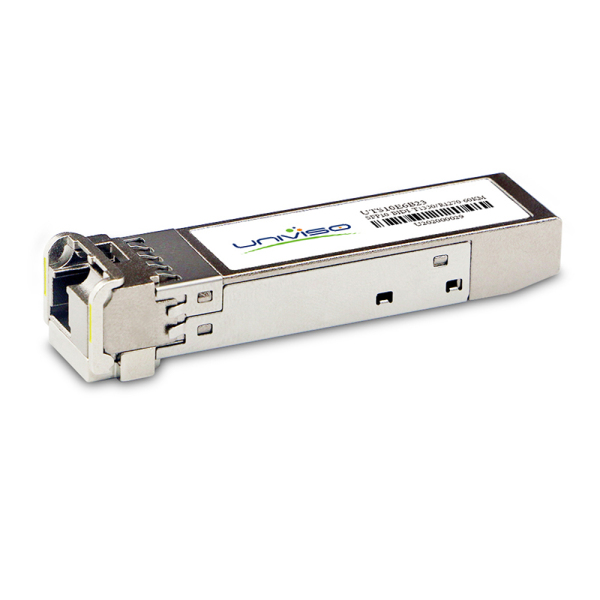

| Description | 10GBase-BIDI SFP+ | support Hot-pluggable | Yes |
| Max Data Rate | 10Gbps | Warranty Time | 3 years |
| Max Cable Distance | 70km | DDM/DOM function | Yes |
| Connector | LC | No. of Fiber | 1 |
| Wavelength | 1270/1330nm | Fiber Type（Media）: | SMF |
Product Features
• Supports 8.5Gb/s to 11.3Gb/s bit rates
• Hot-pluggable SFP+ footprint
• Single LC for Bi-directional Transmission
• Maximum link length of 70km
• Built-in 1270 WDM Filter
• Built-in 1270nm CWDM DFB Laser.
• Power dissipation <1.5W
• No Reference Clock required
• Built-in digital diagnostic functions
• Temperature range 0°C to 70°C
• Very low EMI and excellent ESD protection
• RoHS Compliant Part
Applications
• 10G Ethernet
• 10G Fibre Channel
• SONET OC-192/SDH STM-64
