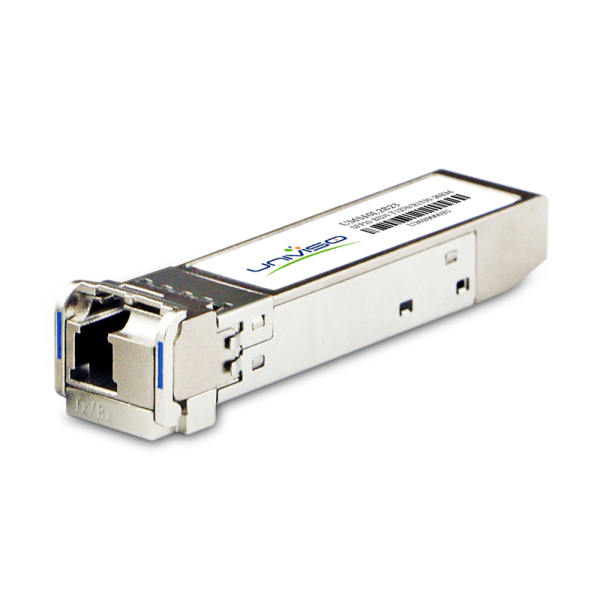

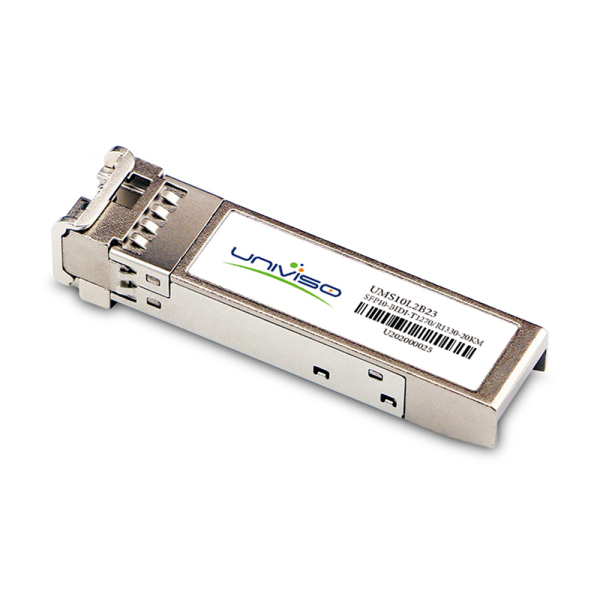

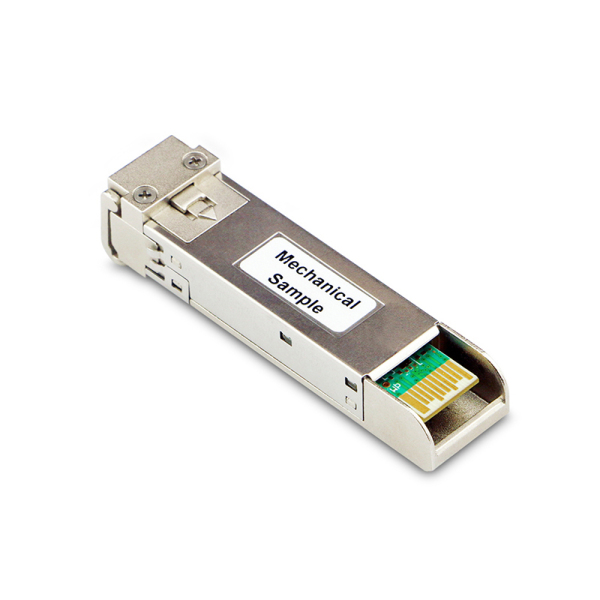

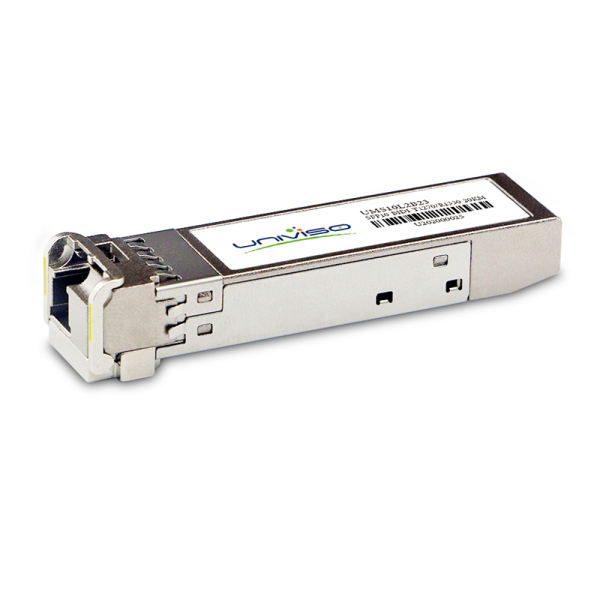

| Description | 10G SFP+BIDI LR | support Hot-pluggable | Yes |
| Max Data Rate | 11.3Gbps | Warranty Time | 3 years |
| Max Cable Distance | 20km | DDM/DOM function | Yes |
| Connector | LC | No. of Fiber | 1 |
| Wavelength | TX1270nm/RX1330nm | Fiber Type（Media）: | SMF |
Product Features
• Supports from 9.83Gb/s to 11.3Gb/s bit rates
• Compliant with IEEE 802.3ae 10GBASE-LR/LW
• Compliant with 10GFC
• Compliant with SFF-8431
• Hot-pluggable SFP+ footprint
• 1270nm DFB laser transmitter and 1330 PIN Receiver
• Simplex LC connector
• Built-in digital diagnostic functions
• Up to 20km on SMF
• Single power supply 3.3V
• RoHS Compliant
• Operating temperature range: 0℃ to 70℃.
Applications
• 10GBASE-LR/LW Ethernet
• 10GFC
• 10G CPRI
