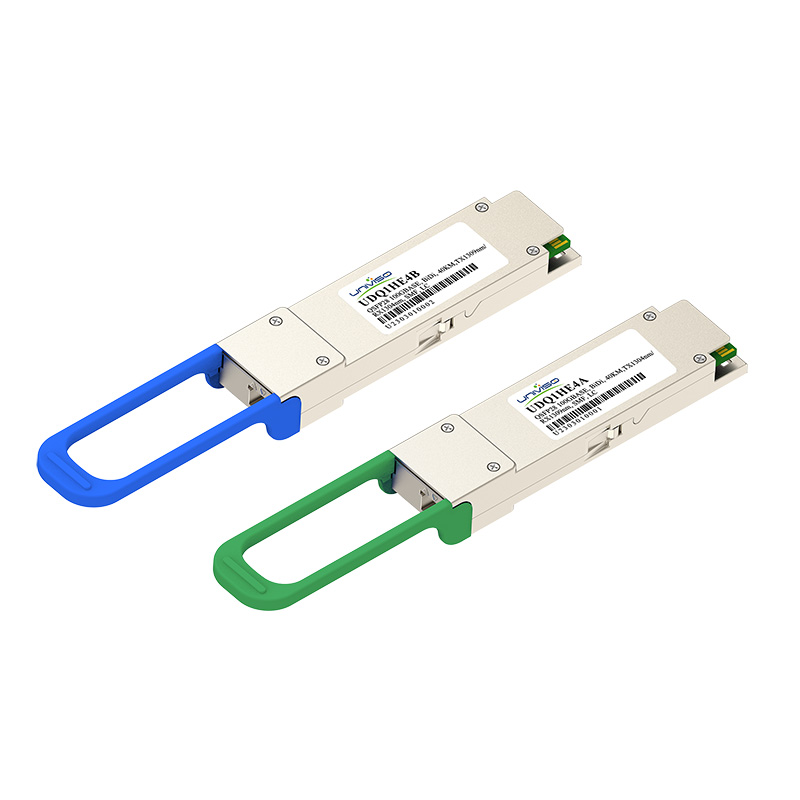

| Description | 100G BIDI QSFP28 40KM | support Hot-pluggable | Yes |
| Max Data Rate | 103.12Gbps (4x 25.78Gbps) | Warranty Time | 3 years |
| Max Cable Distance | 40km | DDM/DOM function | Yes |
| Connector | LC | No. of Fiber | 1 |
| Wavelength | Tx1304/Rx1309nm | Fiber Type（Media）: | SMF |
Product Features
• Supports 100GBASE-ER1-40 BIDI;
• Typical transmission signal rate 103.125Gbps;
• Up to 40km transmission on SMF;
• EML laser and APD receiver;
• 4x25.78Gb/s with NRZ electrical interface (CAU14);
• High speed l/O electrical interface;
• 12C interface with integrated Digital Diagnostic monitoring;
• QSFP28 MSA package with simplex LC connector;
• Single +3.3V power supply;
• Integrated FEC fuction support customer traffic BER<1E-12;
• Maximum power consumption 4.5 V;
• Operating case temperature: 0 to +70°C;
• Compliantto 100G-LR1-20,100G-ER1-30 and 100G-ER1-40 Technical Specifications;
• QSFP28 package compliant to SFF-8636 & SFF-8679 standard;
• Complies with EU Directive 2015/863/EU;
Application
• 100GBASE-ER1-40 BIDI;
