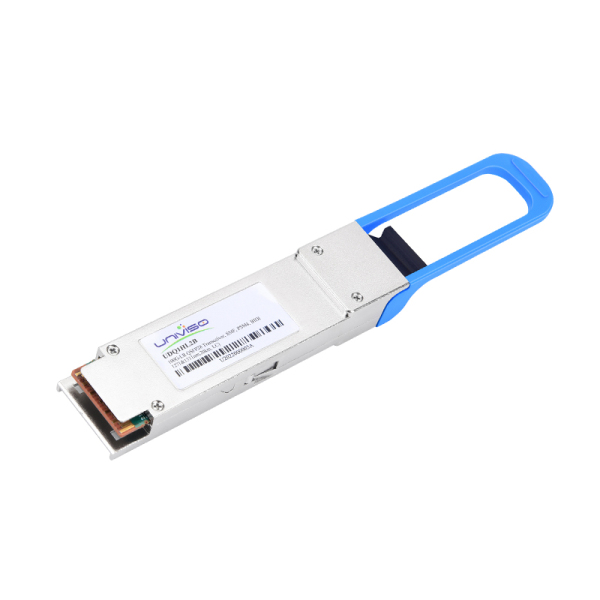

| Description | 100G BIDI QSFP28 LR | support Hot-pluggable | Yes |
| Max Data Rate | 103.12Gbps (4x 25.78Gbps) | Warranty Time | 3 years |
| Max Cable Distance | 20km | DDM/DOM function | Yes |
| Connector | LC | No. of Fiber | 1 |
| Wavelength | Tx1271/Rx1331nm | Fiber Type（Media）: | SMF |
Product Features
• Supports 100GBASE-LR1-20 BIDI
• Lane signaling rate 106.25Gb/s with PAM4,111.8Gb/s compatible
• Up to 20km transmission on SMF
• EML Laser and PIN receiver
• 4x25.78Gb/s with NRZ electrical interface (CAUI-4)
• High speed I/O electrical interface
• I2C interface with integrated Digital Diagnostic monitoring
• QSFP28 MSA package with simplex LC connector
• Single +3.3V power supply
• Support HW TX_DIS and RX_LOS for telecom application
• Maximum power consumption 4.5 W
• Operating case temperature: 0 to +70 °C
• Compliant to 802.3cu, SFF-8636&SFF-8679 standard
• Complies with EU Directive 2011/65/EU
Application
• 100GBASE-LR1 BIDI
