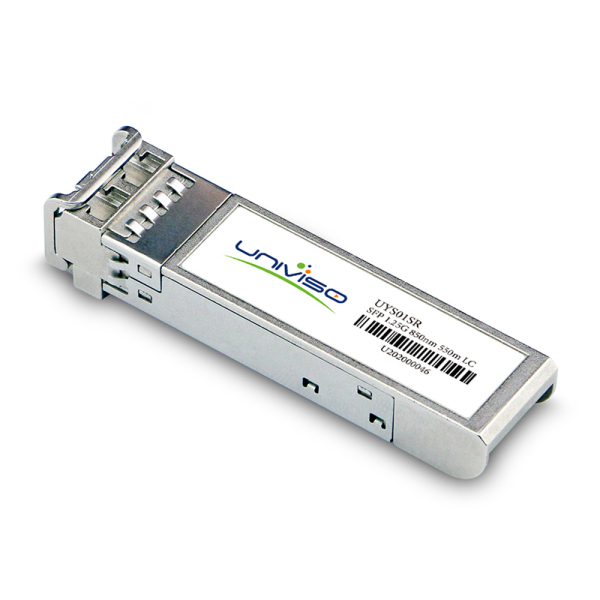

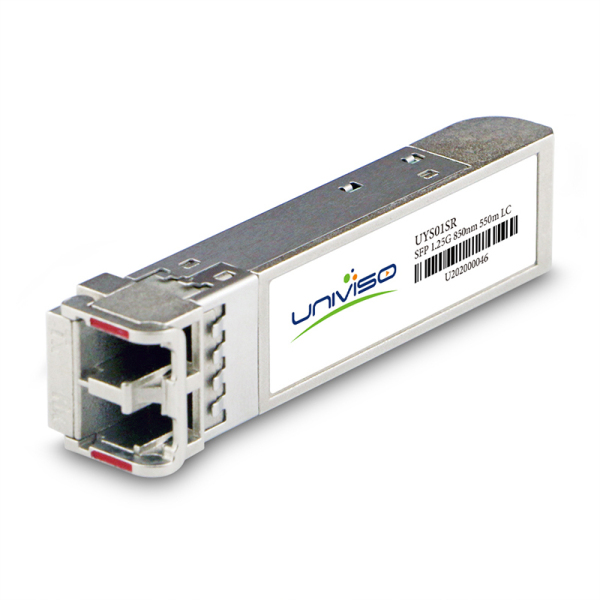

| Description | 1.25G SFP SR | support Hot-pluggable | Yes |
| Max Data Rate | 1.25Gbps | Warranty Time | 3 years |
| Max Cable Distance | 550m | DDM/DOM function | Yes |
| Connector | LC | No. of Fiber | 2 |
| Wavelength | 850nm | Fiber Type（Media）: | MMF |
Product Features
● UP to 1.25Gbps data rate
● Serial ID module on MOD(0-2)
● Duplex LC receptacle optical interface compliant
● International Class 1 laser safety certified
● single +3.3V power supply
● Transmitter disable input
● DDM function implemented
● Operating temperature range 0 to+70°C (Commercial); -40~85°C (Industry)
● HOT-Pluggable
● Receiver loss of Signal Output
● AC coupling of PECL signals
● RoHS Compliance
Application
● Gigabit Ethernet
● Switch to switch interface
● Gigabit Fiber Channel
● Switched backplane applications
