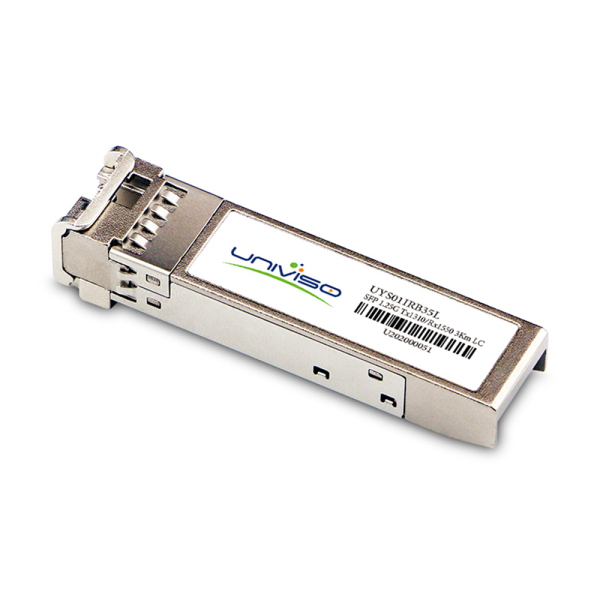

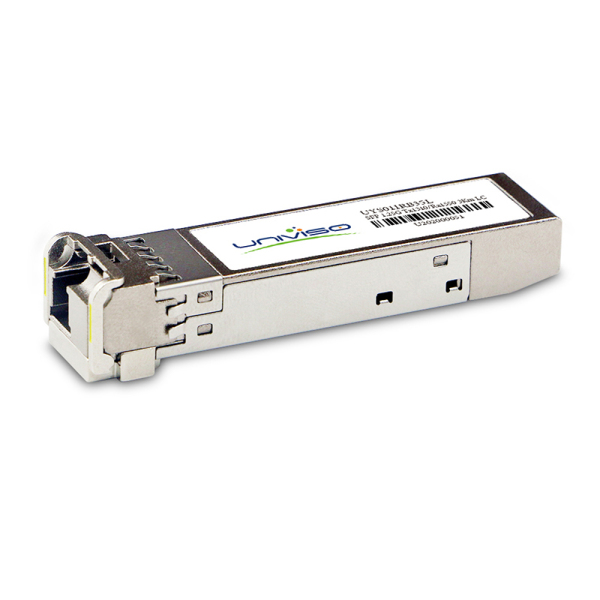

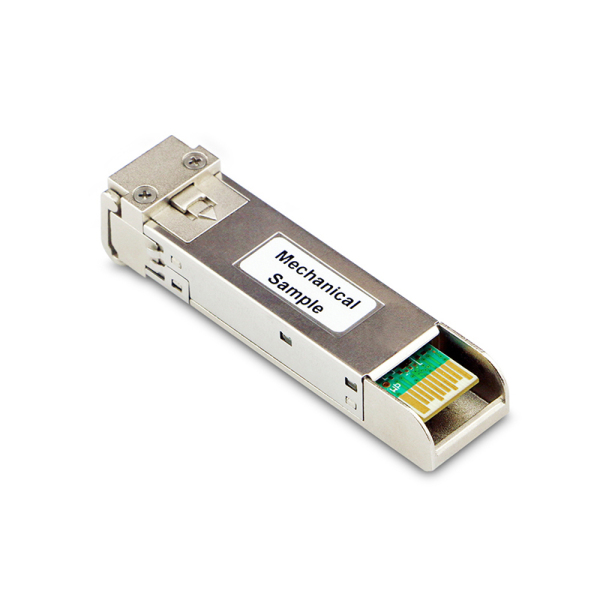

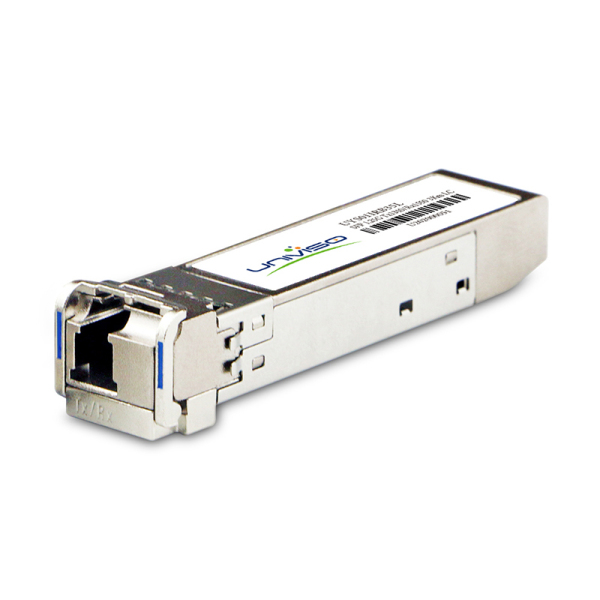

| Description | 1.25GBase-BIDI SFP | support Hot-pluggable | Yes |
| Max Data Rate | 1.25Gbps | Warranty Time | 3 years |
| Max Cable Distance | 40km | DDM/DOM function | Yes |
| Connector | LC | No. of Fiber | 1 |
| Wavelength | 1310/1550nm | Fiber Type（Media）: | SMF |
Product Features
• Dual data-rate of 1.25Gbps/1.063Gbps operation
• 1310nm DFB laser and PIN photodetector for 40km transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring:
• Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature: : 0 to+70°C (Commercial); -40~85°C (Industry)
Applications
• Gigabit Ethernet
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems
