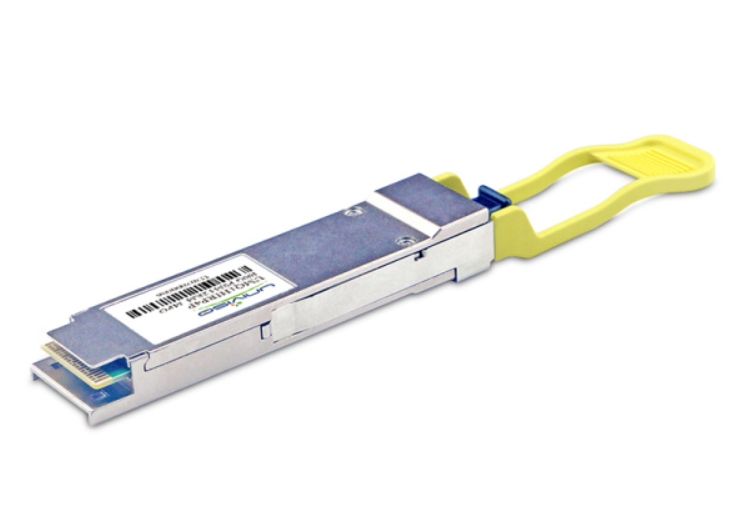

In the fast - evolving world of high - speed networking, the 100G QSFP28 optical module has emerged as a pivotal component. QSFP28 stands for Quad Small Form - Factor Pluggable 28 Gbps. This compact and highly efficient module is designed to support data rates of up to 100 Gbps, making it a cornerstone for modern 100G Ethernet and Infiniband connectivity. Its small form factor not only saves valuable space in network switches and servers but also enables higher port density, allowing for more connections in a limited physical footprint.

• Data Centers: Data centers are constantly faced with the challenge of handling massive amounts of data traffic. 100G QSFP28 modules are widely used in data center spine - leaf architectures. They enable high - speed communication between servers, storage devices, and network switches, ensuring seamless data transfer for cloud computing services, big data analytics, and content delivery networks.

• Enterprise Networks: As enterprises increasingly rely on cloud - based applications, video conferencing, and large - scale data sharing, the need for high - speed and reliable network connections has grown. 100G QSFP28 modules are deployed in enterprise core networks to support high - volume data transfer between different departments and branch offices, enhancing overall business efficiency.

• Telecommunications and Service Providers: Telecom companies and service providers use 100G QSFP28 modules for their metro and long - haul networks. They are crucial for delivering high - speed broadband services, 5G backhaul, and supporting the growing demand for high - definition video streaming and online gaming.

• High - Performance Computing (HPC): In HPC environments, where supercomputers need to communicate with each other at extremely high speeds, 100G QSFP28 modules provide the necessary bandwidth. They enable rapid data exchange between computing nodes, facilitating complex simulations, scientific research, and financial modeling.

• Small Form Factor and High Port Density: The compact size of the 100G QSFP28 module allows network equipment manufacturers to pack more ports into a single switch or network interface card. For example, a standard 1U switch can accommodate a significantly larger number of 100G QSFP28 ports compared to larger - sized modules, maximizing the network capacity within a limited rack space.

• Low Power Consumption: With energy efficiency becoming a major concern in network design, 100G QSFP28 modules are engineered to consume relatively low power. This not only reduces the overall power bill for data centers and enterprises but also helps in heat management, as less power consumption means less heat generation. Lower heat levels, in turn, contribute to the reliability and longevity of network equipment.

•


The QSFP28 SR4 module is specifically designed for short - distance transmissions, typically up to 100 meters. It uses a parallel transmission method, with four lanes of 25 Gbps each to achieve a total data rate of 100 Gbps. This module is highly compatible with multi - mode fiber (MMF), making it an ideal choice for data center internal connections, such as server - to - switch and switch - to - switch links within a rack. The use of multi - mode fiber in these short - distance applications is cost - effective, and the QSFP28 SR4 module's ability to work seamlessly with MMF ensures efficient and reliable data transfer.

The QSFP28 LR4 module is optimized for long - distance transmissions, capable of reaching up to 10 kilometers. It employs wavelength - division multiplexing (WDM) technology, where four different wavelengths of light are combined and transmitted over a single strand of single - mode fiber (SMF). This allows for high - speed data transfer over long distances without significant signal degradation. In large - scale data centers that span multiple buildings or in metro - area networks, the QSFP28 LR4 module plays a crucial role in connecting different network segments. Its compatibility with single - mode fiber, which has lower attenuation over long distances compared to multi - mode fiber, makes it suitable for these long - haul applications.

The QSFP28 PSM4 module offers high - speed and low - power operation. It is designed for mid - to - long - distance transmissions, typically ranging from 200 meters to 2 kilometers. This module uses single - mode multi - core fiber, with each core dedicated to a specific data lane. The use of multi - core fiber in the PSM4 module helps in reducing the overall cable complexity and cost while maintaining high - speed data transfer. It is well - suited for applications where a balance between cost and performance is required, such as in some enterprise campus networks or in data center interconnects within a relatively large geographical area.

The QSFP28 CWDM4 module finds applications in computing, high - frequency trading, and other high - performance network scenarios. It also uses wavelength - division multiplexing technology, specifically Coarse Wavelength - Division Multiplexing (CWDM). This module can transmit data over distances of up to 10 kilometers. The CWDM4 technology allows for cost - effective multiplexing of multiple wavelengths, making it an attractive option for applications that require high - speed data transfer over moderate distances at a relatively lower cost. In high - frequency trading, where split - second decision - making is crucial, the QSFP28 CWDM4 module provides the necessary high - speed and reliable connectivity.

• Short - Distance (5 - 100 meters): For applications with very short - distance requirements, such as within a single rack in a data center, the QSFP28 SR4 module is the best choice. Its compatibility with multi - mode fiber and parallel transmission technology ensure high - speed data transfer at a reasonable cost.

• Medium - Distance (100 meters - 2 kilometers): When the transmission distance falls within the 100 - meter to 2 - kilometer range, the QSFP28 PSM4 module is a suitable option. Its use of single - mode multi - core fiber and optimized design for mid - range distances make it a reliable solution.

• Long - Distance (10 kilometers): For long - distance applications, especially in metro - area networks or data center interconnects over large distances, the QSFP28 LR4 or CWDM4 modules are recommended. Their ability to transmit data over single - mode fiber using wavelength - division multiplexing technology enables high - speed and reliable communication over extended distances.

•


• Multi - Mode Fiber Wiring: If the existing or planned network infrastructure is based on multi - mode fiber, the QSFP28 SR4 module is the natural choice. Multi - mode fiber is more cost - effective for short - distance installations, and the SR4 module's compatibility with it ensures seamless integration. The parallel transmission in SR4 modules aligns well with the characteristics of multi - mode fiber, providing efficient data transfer.

• Single - Mode Fiber Wiring: For single - mode fiber - based networks, modules like the QSFP28 LR4, PSM4, and CWDM4 are more appropriate. Single - mode fiber has lower attenuation over long distances, and these modules are designed to take full advantage of this property. The use of wavelength - division multiplexing in LR4 and CWDM4 modules, and the multi - core fiber support in PSM4 modules, are optimized for single - mode fiber environments.

•


• Cost - Conscious Applications: In cost - sensitive applications, such as small - to - medium - sized enterprise networks or data center expansions with a tight budget, the QSFP28 SR4 module for short - distance and QSFP28 CWDM4 module for mid - to - long - distance applications can be considered. The SR4 module's compatibility with cost - effective multi - mode fiber and the CWDM4 module's cost - efficient wavelength - division multiplexing make them attractive options.

• High - Performance, Higher - Budget Applications: For applications where performance is of utmost importance and cost is less of a constraint, such as in high - performance computing or large - scale cloud data centers, modules like the QSFP28 LR4 can be selected. Although they may come at a higher cost, their ability to provide reliable high - speed long - distance transmission justifies the investment.

•
