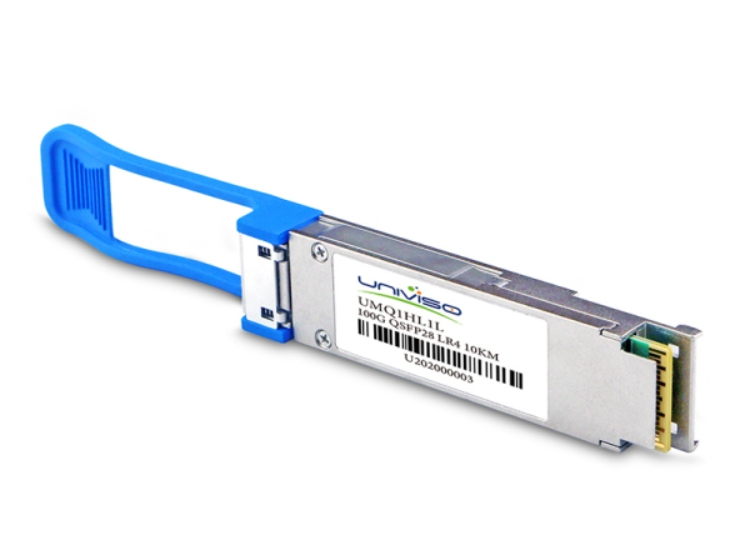

In the rapidly evolving landscape of high - speed networking, the 100G QSFP28 (Quad Small Form - Factor Pluggable 28) has emerged as a pivotal component for achieving efficient data transmission. Its widespread use in data centers, cloud computing, and high - performance computing environments makes the correct selection of a 100G QSFP28 module crucial. Here are six key aspects to consider when making this important choice.

The first step in choosing a 100G QSFP28 module is to have a clear understanding of your application needs. Are you using it for short - reach intra - data - center connections, such as between servers and top - of - rack switches? Or do you require long - haul transmission over fiber optic cables for connecting different data centers across cities or even countries? For short - reach applications, cost - effective modules with lower power consumption might be sufficient. However, long - haul applications demand modules with high - quality optical components that can maintain signal integrity over extended distances. Additionally, if your application involves high - density deployments, you need to ensure that the chosen module is compatible with your existing networking equipment and can fit into the available space.

Performance parameters play a vital role in the selection process. The data rate is an obvious but critical factor - for 100G QSFP28, it should be able to support a consistent 100Gbps data transfer rate. Error rate is another key metric. A low bit - error rate (BER), typically in the order of 10^-12 or lower, is essential to ensure reliable data transmission. The optical budget of the module, which determines the maximum loss the link can tolerate, is also important. It is influenced by factors such as the transmit power, receive sensitivity, and fiber attenuation. Modules with a higher optical budget are more suitable for longer and more complex fiber optic links. Power consumption is not to be overlooked either, especially in large - scale data center deployments where hundreds or thousands of modules are used. Lower power - consuming modules can significantly reduce energy costs and heat management challenges.

There are various types of 100G QSFP28 modules available in the market, each with its own characteristics. Copper - based QSFP28 modules are cost - effective and suitable for short - distance connections within a data center, usually up to 7 meters. They offer relatively low power consumption but are limited by the distance they can cover. On the other hand, fiber - optic QSFP28 modules come in different flavors, such as single - mode and multi - mode. Single - mode fiber modules are ideal for long - haul applications, capable of transmitting data over distances of up to 10 kilometers or more. Multi - mode fiber modules, while having a shorter reach (usually up to 300 meters), are more suitable for high - density, short - reach applications within a data center due to their lower cost and ease of installation. There are also QSFP28 modules with integrated optics, which can simplify the installation process and reduce the overall cost in some cases. When choosing, you need to weigh the pros and cons of each type based on your application requirements.

Compatibility and interoperability are crucial for seamless integration into your existing network infrastructure. The 100G QSFP28 module should be compatible with your network switches, routers, and other networking equipment. Check the specifications of your equipment to ensure that it supports the QSFP28 form - factor and the required data rate. Interoperability with different brands of modules is also important, especially if you plan to use a mix of products from multiple vendors. Some networking equipment may have specific requirements or limitations regarding the modules they can work with, so it is essential to do thorough research and, if possible, test the module in a sample setup before making a large - scale purchase.

The quality and reliability of a 100G QSFP28 module directly impact the stability of your network. High - quality modules are built with robust components that can withstand environmental factors such as temperature variations, humidity, and vibration. They also undergo rigorous testing during the manufacturing process to ensure that they meet industry standards. Look for modules from reputable manufacturers with a proven track record of quality. Reliability can be gauged by factors such as the module's mean time between failures (MTBF) and the availability of warranties. A longer MTBF and a comprehensive warranty are indicators of a more reliable product, which can save you time and money in the long run by reducing the frequency of module replacements and network downtime.
