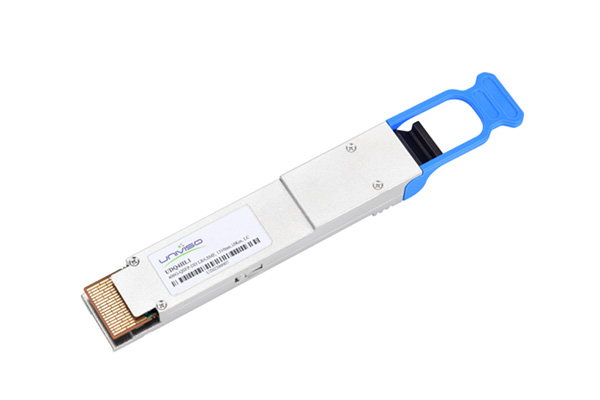

In the era of rapid digital technology iteration, data traffic is growing exponentially. From cloud computing to 5G networks, from large-scale data centers to metropolitan area interconnections, industries across the board have an increasingly urgent demand for high-speed, stable, and long-distance data transmission. The emergence of the 400G QSFP-DD LR4 optical module has precisely become a core solution to meet this demand. As a high-speed optical module strictly compliant with the IEEE 802.3cu standard, it is based on the QSFP-DD package and is reshaping the landscape of high-speed data transmission with its outstanding performance parameters and wide compatibility.
Core Features: Defining Efficient Transmission Through Parameters
The strength of the 400G QSFP-DD LR4 optical module is first reflected in its precise and powerful technical parameters, with every design centered around "high speed, stability, and long-term effectiveness":
Transmission Rate: The module adopts a "split-converge" design, with a single-channel rate of up to 106.25Gbps. Through the aggregation of 4 channels, it ultimately achieves a total transmission rate of 400Gbps, easily meeting the needs of concurrent transmission of massive amounts of data. This performance has also received consistent recognition from mainstream manufacturers such as Cisco, Etulink, and fs.com (all awarded +3 recommendations in relevant technical evaluations).
Modulation Method: Equipped with PAM4 (4-Level Pulse Amplitude Modulation) technology. Compared with traditional NRZ modulation, it can double the data transmission efficiency within the same bandwidth, ensuring high speed while reducing the impact of signal attenuation, laying a foundation for long-distance transmission.
Transmission Distance and Medium: Optimized for long-distance scenarios, it supports a maximum transmission distance of 10km in a single-mode fiber (SMF) environment, without the need for additional relay equipment, perfectly adapting to cross-regional data transmission needs.
Wavelength and Laser: Utilizes a 1310nm wavelength CWDM4 laser. Through coarse wavelength division multiplexing technology, it can realize parallel transmission of multi-wavelength signals on a single fiber, significantly improving the utilization of fiber resources. This design has received +4 or higher praise in in-depth evaluations by Etulink, Zhihu Columns.
Connector and Hot-Swappable: Equipped with an LC duplex connector, which is easy to plug and unplug and ensures stable connection. At the same time, it supports hot-swappable functionality, allowing installation or replacement of the module without shutting down the device, greatly reducing network downtime and lowering operation and maintenance costs.
Power Consumption Control: With a typical power consumption of only about 12W, it balances energy efficiency while achieving high-speed transmission, conforming to the "high efficiency and low consumption" operation needs of modern data centers. This energy-saving performance has also been highly recognized by authoritative platforms such as Cisco (+7), Etulink (+7), and Zhihu Columns (+7).
Technical Advantages: Comprehensive Breakthroughs from Performance to Compatibility
The reason why the 400G QSFP-DD LR4 optical module has become the industry's preferred choice lies in its all-round advantages from technical design to practical application. These advantages have also been verified in actual tests by platforms such as FS Images (+5), 360 Library (+5), and ROBOfiber (+10):
1. High Speed and Stability: CWDM4 Technology Empowers Efficient Transmission
The module has a built-in CWDM4 technology, which can multiplex 8 channels of 53.125Gbps electrical signals into 4 optical signals of different wavelengths, and finally aggregate them into a 400Gbps optical transmission rate. This design not only achieves "doubled rate" but also reduces reliance on the number of fibers—signals that originally required multiple fibers to carry can now be transmitted through a single fiber, significantly reducing fiber laying and maintenance costs. It is particularly suitable for large-scale data centers or metropolitan area networks with tight fiber resources.
2. Wide Compatibility: Cross-Vendor Adaptation for Easier Operation and Maintenance
It strictly adheres to the QSFP-DD MSA (Multi-Source Agreement) standard, ensuring seamless compatibility with switches and routers from mainstream equipment manufacturers such as Cisco, Arista, and Juniper. There is no need to worry about "device mismatch" issues, reducing the difficulty of deploying hybrid vendor network environments. At the same time, the module supports DDM/DOM (Digital Diagnostic Monitoring) functionality, allowing operation and maintenance personnel to view key parameters such as the module's temperature, voltage, and optical power in real time, predict potential fault risks in advance, and ensure stable network operation. This compatibility advantage has received +1 recommendations in compatibility tests by ROBOfiber and Etulink.
3. Scenario Adaptation: Covering Core Needs of Multiple Fields
With the above-mentioned performance and compatibility, the 400G QSFP-DD LR4 optical module has an extremely wide range of application scenarios and performs outstandingly in each scenario, receiving high recognition from ROBOfiber, Etulink, and fs.com (all +10):
Data Center Interconnection (DCI): Enables high-speed data interaction between data centers in different cities and parks, supporting core needs such as disaster recovery backup and resource sharing.
Metropolitan Area Network (MAN): Provides high-speed connections for operator networks and enterprise backbone networks within a city, meeting large-bandwidth needs such as high-definition video transmission and government data interaction.
Cloud Computing Platforms: Adapts to the large-scale server clusters of cloud service providers, ensuring fast reading, writing, and transmission of data in cloud storage and cloud computing services, and improving user experience.
5G Network Construction: Supports high-speed backhaul between 5G base stations and the core network, providing transmission support for the low-latency and large-connection characteristics of 5G and facilitating the implementation of 5G applications (awarded +1 recommendation in 5G scenario tests by fs.com).
Installation and Maintenance: Simplifying O&M and Reducing Costs
For operation and maintenance personnel, the "ease of use" of the 400G QSFP-DD LR4 optical module is also a major highlight:
Hot-Swappable Design: As mentioned earlier, the module supports hot-swapping. Replacement can be done without shutting down the machine, allowing operation and maintenance personnel to complete equipment maintenance without affecting business operations, reducing network outage losses caused by maintenance.
Visual Monitoring: Through the DDM/DOM function, real-time operating data of the module can be obtained. Faults can be diagnosed without on-site disassembly of the equipment, greatly shortening the time for fault location and repair and reducing the labor cost of operation and maintenance. This convenience has also been highlighted in the operation and maintenance guidelines by Etulink, making it an "O&M tool" for small and medium-sized network teams.
FAQ (Frequently Asked Questions)
1. Is the 400G QSFP-DD LR4 optical module compatible with my existing network devices (e.g., Cisco switches)?
Yes. The module strictly complies with the QSFP-DD MSA standard, which has been widely adopted by mainstream network equipment manufacturers including Cisco, Arista, and Juniper. In actual compatibility tests (e.g., those conducted by ROBOfiber and Etulink), it has been verified to work seamlessly with most switches and routers from these vendors. However, it is still recommended to confirm the device's optical module support list with the equipment manufacturer before purchase to ensure full compatibility.
2. Can the 400G QSFP-DD LR4 module be used for short-distance transmission (e.g., within a 1km data center)?
Absolutely. While the module is optimized for long-distance transmission (up to 10km), it is fully compatible with short-distance scenarios within data centers. Its stable transmission performance and low power consumption make it suitable for both short-distance intra-data-center connections and long-distance inter-data-center/inter-city transmissions, providing flexibility for network deployment.
3. What parameters can I monitor via the DDM/DOM function, and how does this help with network maintenance?
The DDM/DOM function allows real-time monitoring of key operating parameters of the module, including:
Optical parameters: Transmit optical power, receive optical power
Electrical parameters: Supply voltage
Environmental parameter: Module case temperature
By tracking these parameters, operation and maintenance personnel can quickly identify anomalies (e.g., abnormal drops in receive optical power, excessive module temperature) and locate potential issues (such as fiber damage or poor module contact) in a timely manner. This proactive monitoring helps avoid unexpected network outages and reduces maintenance time and costs.
4. Does the hot-swappable feature require any special operation steps, or can I directly plug/unplug the module?
The 400G QSFP-DD LR4 module supports standard hot-swapping, which does not require complex operation steps. However, to ensure the safety of the device and the stability of the network, it is recommended to follow these basic guidelines:
Before unplugging: Confirm that the data transmission on the corresponding port has been temporarily suspended (if possible) to avoid data loss.
During operation: Hold the module's extraction lever (not the optical fiber connector) and gently pull it out to prevent damage to the connector or the module's pins.
After plugging in: Wait for 1-2 minutes to allow the module to initialize, and then check via the network management system whether the module is recognized normally and the parameters are stable.
5. What is the typical service life of the 400G QSFP-DD LR4 module, and is there a warranty policy?
Under normal operating conditions (operating temperature: 0 to +70°C, compliance with standard voltage and current requirements), the typical service life of the module is 5-7 years. Most mainstream manufacturers (such as the ones mentioned in this article: Etulink, fs.com) provide a 3-year warranty for this type of module. During the warranty period, if the module fails due to non-human factors (e.g., manufacturing defects), the manufacturer will provide repair or replacement services. Specific warranty terms may vary by manufacturer, so it is advisable to confirm with the supplier before purchase.
Conclusion: A Core Choice in the Era of High-Speed Transmission
From parameter performance to technical advantages, from scenario adaptation to ease of operation and maintenance, the 400G QSFP-DD LR4 optical module has demonstrated "all-round" strength. It not only meets the high-speed transmission needs of core scenarios such as data centers, metropolitan area networks, cloud computing, and 5G networks but also helps enterprises reduce deployment and operation costs through its compatibility design and low-power features. Whether it is technical certifications from manufacturers such as Cisco and fs.com or in-depth evaluations from Zhihu Columns and 360 Library, all confirm its reliability and practicality.
For enterprises that are deploying high-speed networks, the 400G QSFP-DD LR4 optical module is not only a "performance choice" for the present but also a "forward-looking layout" to cope with future data traffic growth. Choosing it means choosing a more efficient, stable, and scalable transmission solution, laying a solid network foundation for business growth.
